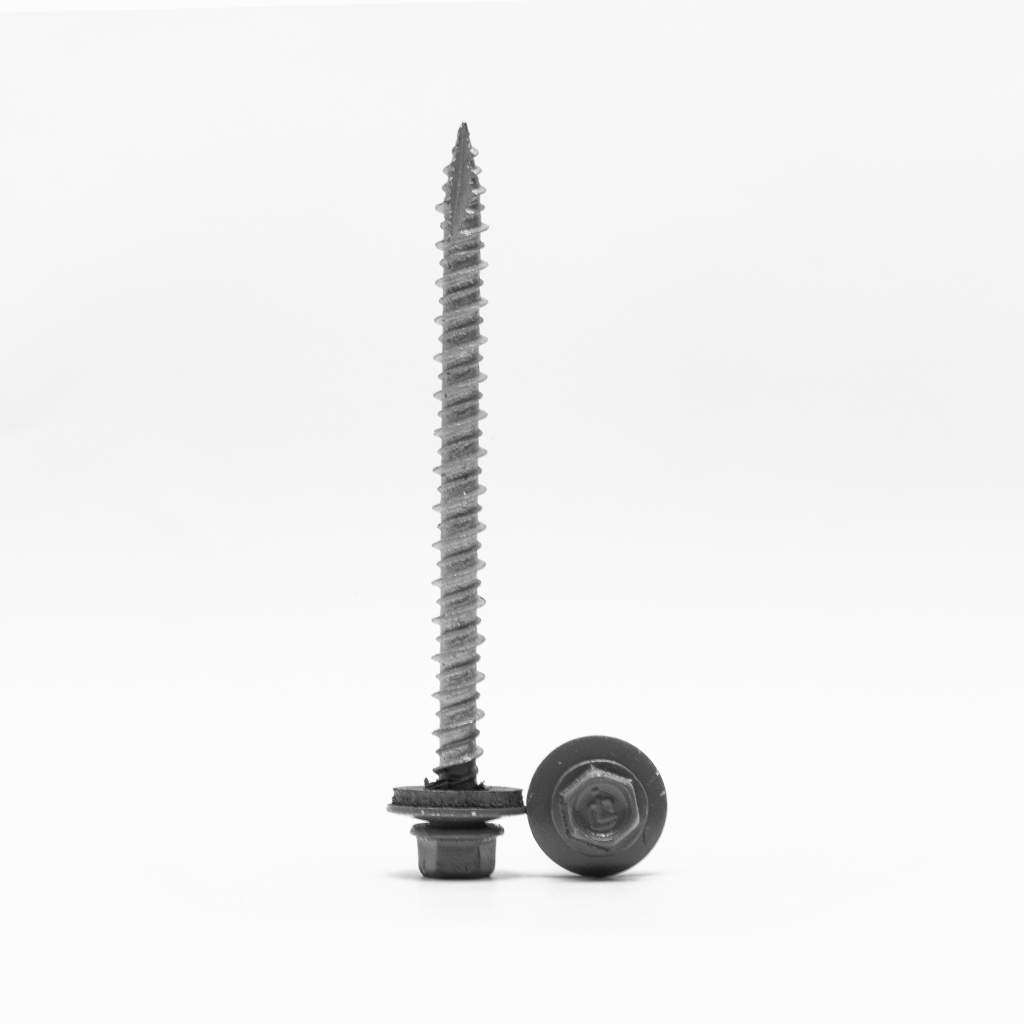

#10 Hi-Lo Screws
#10 HI-LO
These #10 Hi-Lo screws are some of the best in the industry. They are sharper, drill better, and the cut point is true. The paint stays on when installing and builders prefer the “true” sizing and Hi-Lo threading for better holding power and easy installation. Choose from 40 plus in-stock colors that can ship immediately or specifically color match and still receive timely shipping.
- #10 Hi-Lo screw, type 17 point
- Mechanical galvanized
- Hi-Lo threads
- Galvanized EPDM washer 1/2″ OD
- Fastens metal to wood
| PART # | DESCRIPTION | HEAD STYLE | DRILL PT | PCS/BOX | LBS/BOX |
| 91SS | #9 x 1" | 1/4" Hex | Sharp Point | 3,000 | 24.2 |
| 9114SS | #9 x 1-1/4" | 1/4" Hex | Sharp Point | 2,500 | 22.7 |
| 9112SS | #9 x 1-1/2" | 1/4" Hex | Sharp Point | 2,500 | 26.1 |
| 92SS | #9 x 2" | 1/4" Hex | Sharp Point | 2,000 | 24.7 |
| 9212SS | #9 x 2-1/2" | 1/4" Hex | Sharp Point | 1,500 | 22.3 |
| 93SS | #9 x 3" | 1/4" Hex | Sharp Point | 1,000 | 17.5 |
| SUBSTRATE | PENETRATION | PULL-OUT STRENGTH |
| 3/4" Ply | Full | 465 |
| 1/2" Ply | Full | 327 |
| 7/16" OSB | Full | 180 |
| 2 x Yellow Pine | 1" | 894 |
| 2 x Spruce Pine Fir | 1" | 692 |
| 2 x Spruce Pine Fir | 1 - 1/2" | 1,264 |
| SHEAR | TENSILE | TORSIONAL |
| 1,280 | 1,455 | 52 |
| SUBSTRATE | GAUGE | THICKNESS | PULL-OVER STRENGTH |
| AZ55 Galvalume | 29 | .014 | 411 |
| AZ55 Galvalume | 26 | .018 | 567 |
| AZ55 Galvalume | 24 | .024 | 788 |
